Multi-Mission Inshore Patrol Vessel (MMIPV)

For more information, go to Media Release.

South African Navy

Item Details
Length 62 metres
Beam 11.5 metres
Displacement (gross tonnage) 1,000 tonnes
Speed Up to 30 km
Integrated Bridge System OSI’s INTS
Combat Management Systems OSI’s IMMS
Armament 20mm SeaRoque

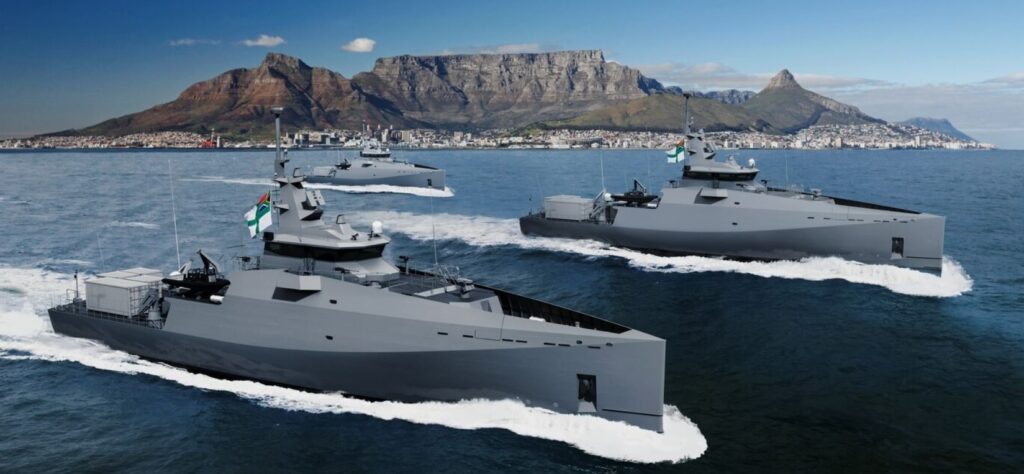

Fitted with OSI’s integrated navigation and tactical systems, the first new Multi Mission Inshore Patrol Vessel (MMIPV), part of the South African Navy’s project BIRO, has successfully completed its First Article Acceptance Test (FAAT).

The IPV, one of three being built at Damen Shipyards Cape Town in South Africa, will be used for coastal maritime activities which include patrol and protection of economic waters.

By using existing OSI technology there was a minimal requirement for development, a shortened delivery lead times, and the inclusion of low-risk tactical options. OSI engaged the customer, designing and providing an innovative bridge solution to meet their needs. The Company fitted the IPV with a navigation and tactical suite consisting of OSI’s Integrated Mission Management System (IMMS) in the operations center of the Biro IPV and Tactical Asset Control and Tracking (T-ACT) on board its small craft.

All systems are based on OSI’s proprietary ECPINS Warship ECDIS (WECDIS). ECPINS is the only WECDIS independently certified against NATO WECDIS STANAG 4564.

The INTS is an integrated bridge solution, where ECPINS WECDIS is fully integrated with: X-band and S-band radars, W-AIS, Inertial Navigation System, GPS, Optical Bearing Devices and various other navigation sensors.

The addition of IMMS and T-ACT adds an additional tactical punch. The IMMS, designed specifically for Patrol Boats and OPV, provides: situational awareness & understanding, tactical aids and weapon support, by integrating the various (combat) sensors and effectors with OSI ECPINS advanced WECDIS capabilities extended with extra tactical functions and the powerful OSI proprietary chart engine. Tactical data distribution for both INTS and IMMS is provided by OSI proprietary NavTac DDU.

Successfully used by the SAN since 2014, T-ACT, hosts independent WECDIS and W-AIS functionality on board small craft, providing (high-speed) navigation and Command and Control (C2) capabilities. C2 is arranged by enabling secure data exchange between the Mother Ship and associated Boarding Boat(s) in scenarios that involve surveillance, engagement of suspect craft, or operations at distance from Mother.

The same WECDIS and T-ACT functionality will also be installed on the SAN new Hydrographic vessel and it’s survey boats.
